UC Series Insert Bearings

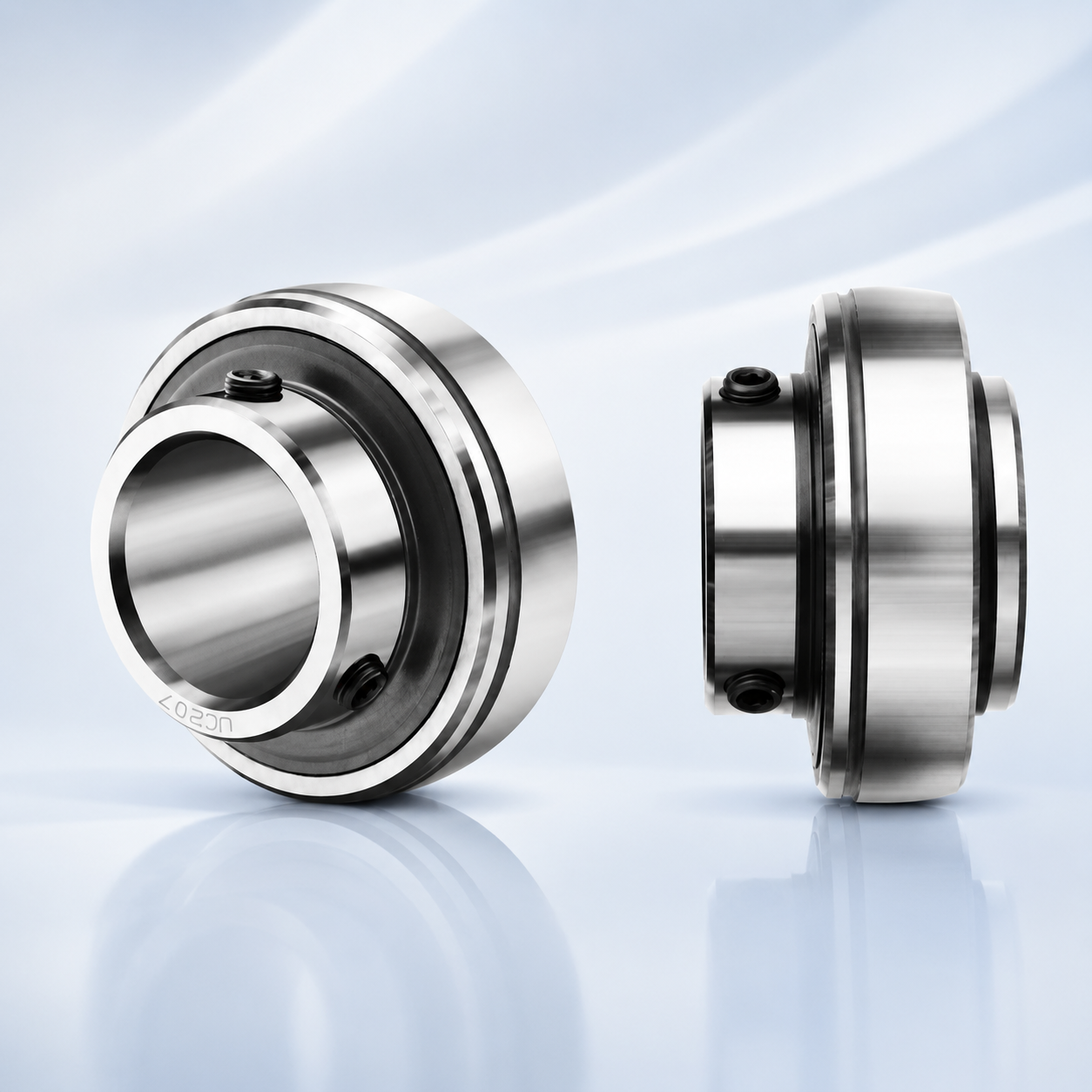

UC series insert bearings are widely used in mounted bearing units and replacement applications.
UC series insert bearings feature a spherical outer-ring design for self-alignment under minor shaft misalignment. Covering shaft sizes from 12 mm to 140 mm (UC201–UC328), they serve as the core insert inside UCP pillow block, UCF square flange, UCFL 2-bolt flange, and UCT take-up units. CTZ manufactures UC bearings with set-screw or eccentric locking, standard international mounting dimensions, and ISO 9001 quality control.

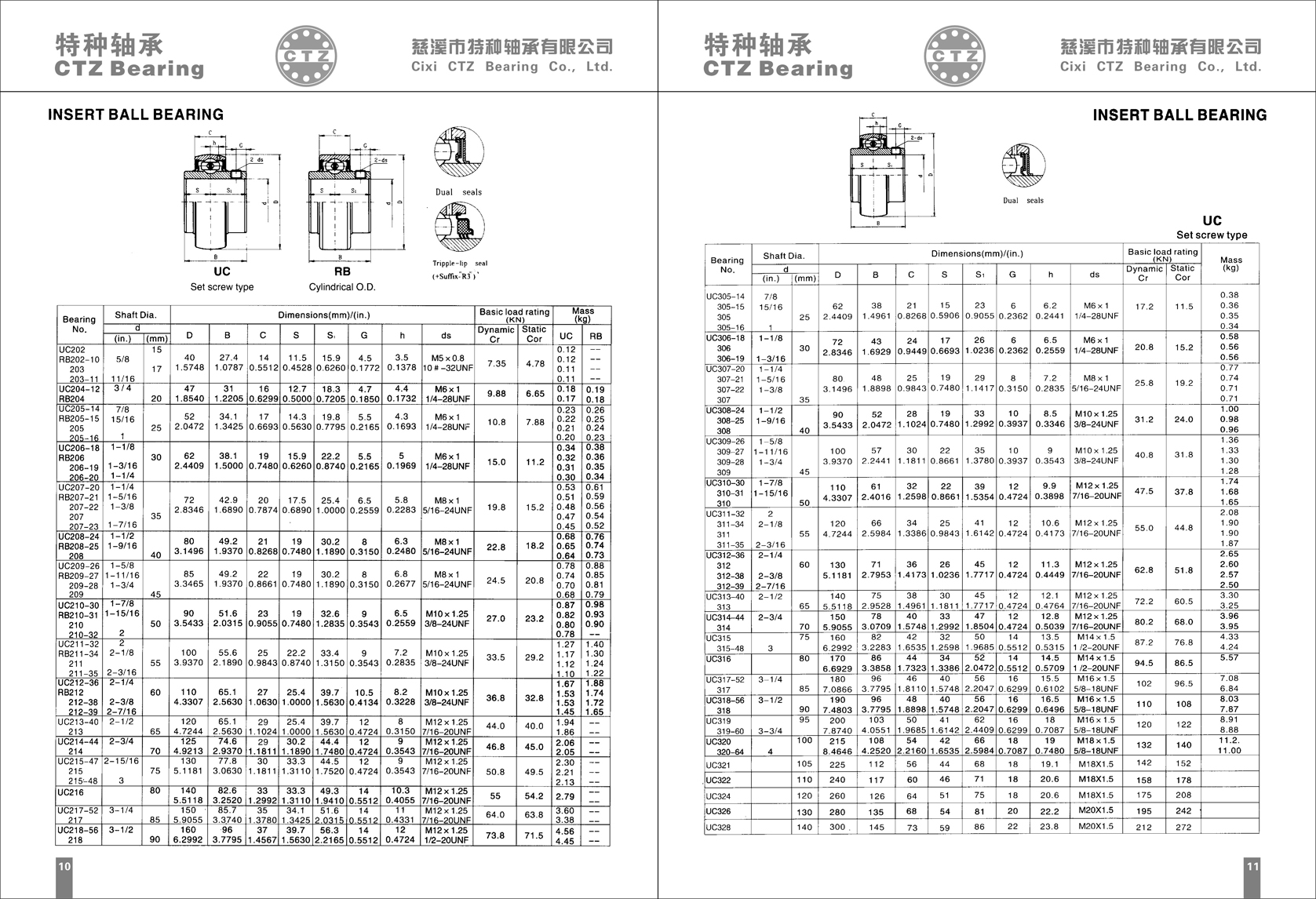

Product Dimension Drawing
Download or view the UC series insert bearing dimension drawing and technical data for model selection.
UC Series Insert Bearing Specifications
| Model | d (mm) | d (in.) | D (mm) | B (mm) | Mass (kg) |
|---|---|---|---|---|---|
| UC202 | 15 | 5/8" | 40 | 27.4 | 0.12 |
| RB202-10 | 15.875 | 5/8" | 40 | 27.4 | 0.11 |
| UC203 | 17 | 11/16" | 40 | 27.4 | 0.11 |
| UC203-11 | 17.462 | 11/16" | 40 | 27.4 | 0.11 |
| UC204-12 | 19.05 | 3/4" | 47 | 31 | 0.19 |
| RB204 | 20 | 3/4" | 47 | 31 | 0.18 |
| UC205-14 | 22.225 | 7/8" | 52 | 34.1 | 0.22 |
| UC205-15 | 23.813 | 15/16" | 52 | 34.1 | 0.22 |
| UC205 | 25 | 1" | 52 | 34.1 | 0.22 |
| UC205-16 | 25.4 | 1" | 52 | 34.1 | 0.23 |
| UC206-18 | 28.575 | 1-1/8" | 62 | 38.1 | 0.34 |
| RB206 | 30 | 1-3/16" | 62 | 38.1 | 0.36 |
| UC206-19 | 30.163 | 1-3/16" | 62 | 38.1 | 0.34 |
| UC206-20 | 31.75 | 1-1/4" | 62 | 38.1 | 0.34 |
| UC207-20 | 31.75 | 1-1/4" | 72 | 42.9 | 0.53 |
| RB207-21 | 33.337 | 1-5/16" | 72 | 42.9 | 0.59 |
| UC207-22 | 34.925 | 1-3/8" | 72 | 42.9 | 0.51 |
| UC207-23 | 36.513 | 1-7/16" | 72 | 42.9 | 0.56 |
| UC208-24 | 38.1 | 1-1/2" | 80 | 49.2 | 0.68 |
| RB208-25 | 39.688 | 1-9/16" | 80 | 49.2 | 0.74 |
| UC209-26 | 41.275 | 1-5/8" | 85 | 49.2 | 0.78 |
| UC209-27 | 42.862 | 1-11/16" | 85 | 49.2 | 0.85 |
| UC209-28 | 44.45 | 1-3/4" | 85 | 49.2 | 0.81 |
| UC209 | 45 | 1-3/4" | 85 | 49.2 | 0.74 |
| UC210-30 | 47.625 | 1-7/8" | 90 | 51.6 | 0.87 |
| RB210-31 | 49.212 | 1-15/16" | 90 | 51.6 | 0.96 |
| UC210-32 | 50.8 | 2" | 90 | 51.6 | 0.9 |
| UC210 | 50 | 2" | 90 | 51.6 | 0.8 |
| UC211-32 | 50.8 | 2" | 100 | 55.6 | 1.27 |
| RB211-34 | 53.975 | 2-1/8" | 100 | 55.6 | 1.4 |
| UC211-35 | 55.563 | 2-3/16" | 100 | 55.6 | 1.17 |
| UC211 | 55 | 2-3/16" | 100 | 55.6 | 1.1 |
| UC212-36 | 57.15 | 2-1/4" | 110 | 65.1 | 1.53 |
| RB212 | 60 | 2-3/8" | 110 | 65.1 | 1.74 |
| UC212-38 | 60.325 | 2-3/8" | 110 | 65.1 | 1.53 |
| UC212-39 | 61.913 | 2-7/16" | 110 | 65.1 | 1.45 |
| UC213-40 | 63.5 | 2-1/2" | 120 | 65.1 | 1.94 |
| UC213 | 65 | 2-1/2" | 120 | 65.1 | 1.86 |
| UC214-44 | 69.85 | 2-3/4" | 125 | 74.6 | 2.06 |
| UC214 | 70 | 2-3/4" | 125 | 74.6 | 2.06 |
| UC215-48 | 76.2 | 3" | 130 | 77.8 | 2.3 |
| UC215 | 75 | 3" | 130 | 77.8 | 2.21 |
| UC216 | 80 | 3-1/8" | 140 | 82.6 | 2.79 |
| UC217-52 | 82.55 | 3-1/4" | 150 | 85.7 | 3.6 |
| UC217 | 85 | 3-1/4" | 150 | 85.7 | 3.38 |
| UC218-56 | 88.9 | 3-1/2" | 160 | 96 | 4.56 |
| UC218 | 90 | 3-1/2" | 160 | 96 | 4.45 |
| UC305-14 | 22.225 | 7/8" | 62 | 38 | 0.38 |
| UC305-15 | 23.813 | 15/16" | 62 | 38 | 0.36 |
| UC305 | 25 | 1" | 62 | 38 | 0.35 |
| UC305-16 | 25.4 | 1" | 62 | 38 | 0.36 |
| UC306-18 | 28.575 | 1-1/8" | 72 | 43 | 0.58 |
| UC306 | 30 | 1-3/16" | 72 | 43 | 0.56 |
| UC306-19 | 30.163 | 1-3/16" | 72 | 43 | 0.56 |
| UC306-20 | 31.75 | 1-1/4" | 72 | 43 | 0.77 |
| UC307-20 | 31.75 | 1-1/4" | 80 | 48 | 0.71 |
| UC307-21 | 33.337 | 1-5/16" | 80 | 48 | 0.71 |
| UC307-22 | 34.925 | 1-3/8" | 80 | 48 | 0.71 |
| UC307-23 | 36.513 | 1-7/16" | 80 | 48 | 0.71 |
| UC308-24 | 38.1 | 1-1/2" | 90 | 52 | 1 |
| UC308-25 | 39.688 | 1-9/16" | 90 | 52 | 0.98 |
| UC308-26 | 41.275 | 1-5/8" | 90 | 52 | 0.96 |
| UC308 | 40 | 1-1/2" | 90 | 52 | 0.96 |
| UC309-26 | 41.275 | 1-5/8" | 100 | 57 | 1.36 |
| UC309-27 | 42.862 | 1-11/16" | 100 | 57 | 1.33 |
| UC309-28 | 44.45 | 1-3/4" | 100 | 57 | 1.3 |
| UC309-29 | 46.038 | 1-13/16" | 100 | 57 | 1.28 |
| UC309 | 45 | 1-3/4" | 100 | 57 | 1.28 |
| UC310-30 | 47.625 | 1-7/8" | 110 | 61 | 1.74 |
| UC310-31 | 49.212 | 1-15/16" | 110 | 61 | 1.68 |
| UC310-32 | 50.8 | 2" | 110 | 61 | 1.65 |
| UC310 | 50 | 2" | 110 | 61 | 1.65 |
| UC311-32 | 50.8 | 2" | 120 | 66 | 2.08 |
| UC311-34 | 53.975 | 2-1/8" | 120 | 66 | 1.9 |
| UC311 | 55 | 2-3/16" | 120 | 66 | 1.87 |
| UC311-35 | 55.563 | 2-3/16" | 120 | 66 | 1.9 |
| UC312-36 | 57.15 | 2-1/4" | 130 | 71 | 2.65 |
| UC312 | 60 | 2-3/8" | 130 | 71 | 2.6 |
| UC312-38 | 60.325 | 2-3/8" | 130 | 71 | 2.57 |
| UC312-39 | 61.913 | 2-7/16" | 130 | 71 | 2.5 |
| UC313-40 | 63.5 | 2-1/2" | 140 | 75 | 3.25 |
| UC313 | 65 | 2-1/2" | 140 | 75 | 3.25 |
| UC314-44 | 69.85 | 2-3/4" | 150 | 78 | 3.95 |
| UC314 | 70 | 2-3/4" | 150 | 78 | 3.95 |
| UC315 | 75 | 3" | 160 | 82 | 4.33 |
| UC315-48 | 76.2 | 3" | 160 | 82 | 4.24 |
| UC316 | 80 | 3-1/8" | 170 | 86 | 5.57 |
| UC317-52 | 82.55 | 3-1/4" | 180 | 96 | 7.08 |
| UC317 | 85 | 3-1/4" | 180 | 96 | 6.84 |
| UC318-56 | 88.9 | 3-1/2" | 190 | 96 | 8.03 |
| UC318 | 90 | 3-1/2" | 190 | 96 | 7.87 |
| UC319 | 95 | 3-11/16" | 200 | 103 | 8.91 |
| UC319-60 | 95.25 | 3-3/4" | 200 | 103 | 8.88 |
| UC320 | 100 | 3-15/16" | 215 | 108 | 11.2 |
| UC320-64 | 101.6 | 4" | 215 | 108 | 11 |
| UC321 | 105 | 4-1/8" | 225 | 112 | 14.2 |
| UC322 | 110 | 4-5/16" | 240 | 117 | 18.8 |
| UC324 | 120 | 4-3/4" | 260 | 126 | 28.8 |
| UC326 | 130 | 5-1/8" | 280 | 135 | 40 |
| UC328 | 140 | 5-1/2" | 300 | 145 | 53 |
Showing 100 of 100 models
Original Dimension Drawing
For full dimensional details, download the original technical drawing below.
