Agricultural Bearings
Agricultural bearings are used in farm machinery, harvesters, planters, disc harrows and other agricultural equipment.
CTZ agricultural bearings are engineered for harsh field conditions in farm machinery including disc harrows, planters, harvesters, and balers. Available in round, square, and hex bore configurations (GW-type, 45–70 mm shaft size) with triple-lip seals and factory grease to resist dust, mud, and washdown. Dynamic load ratings range from 7,350 lb to 14,000 lb, with ISO 9001 quality management and OEM packing options.

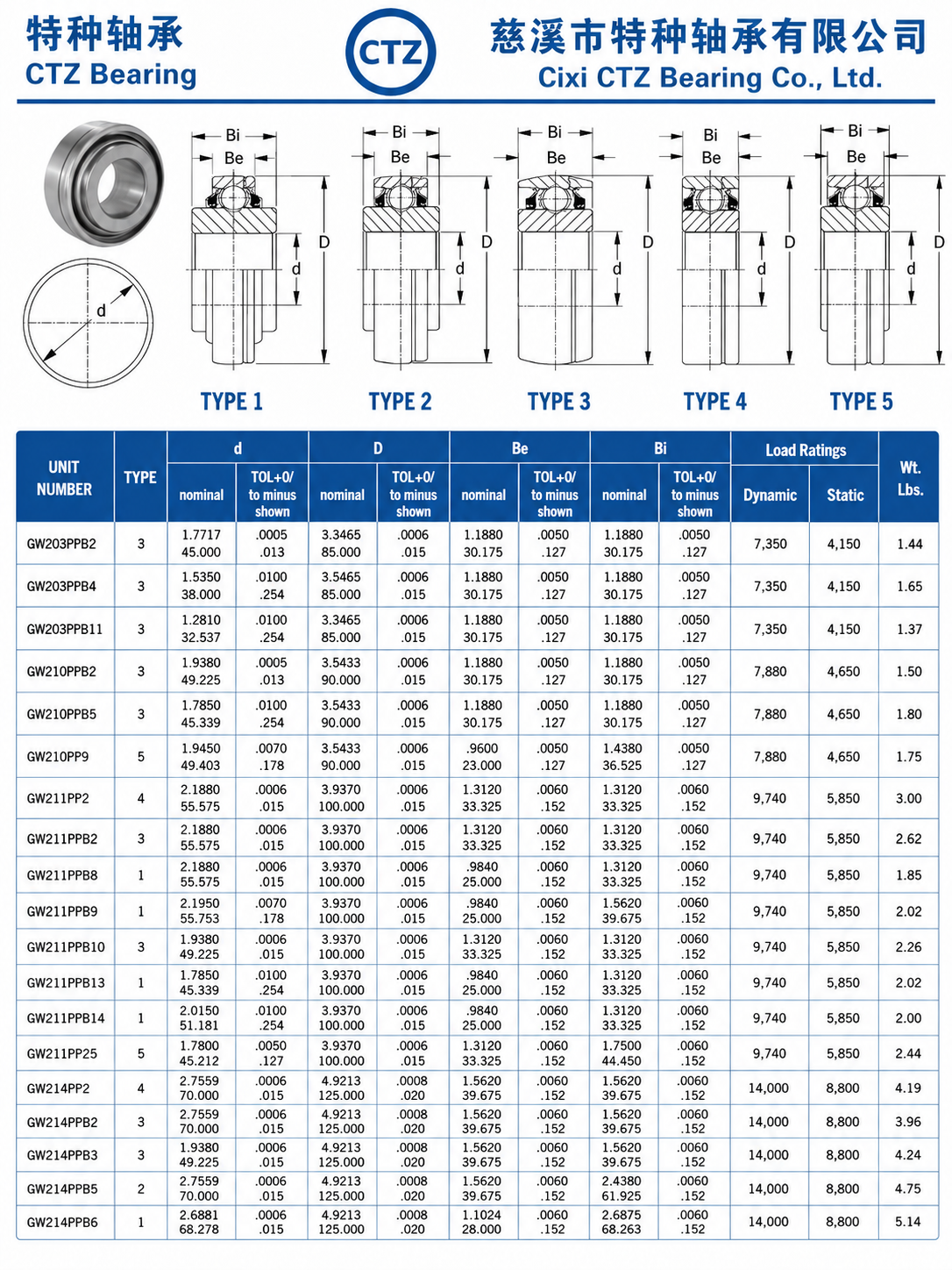

Product Dimension Drawing
Download or view the product dimension drawing and technical data for model selection.
Agricultural Machinery Bearing Specifications
| Unit No. | Type | d (in.) | D (in.) | Be (in.) | Bi (in.) | Dynamic (lbf) | Static (lbf) | Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|
| GW203PPB2 | 3 | 1.772 | 3.346 | 1.188 | 1.188 | 7350 | 4150 | 1.44 |
| GW203PPB4 | 3 | 1.535 | 3.346 | 1.188 | 1.188 | 7350 | 4150 | 1.65 |
| GW203PPB11 | 3 | 1.281 | 3.346 | 1.188 | 1.188 | 7350 | 4150 | 1.37 |
| GW210PPB2 | 3 | 1.938 | 3.543 | 1.188 | 1.188 | 7880 | 4650 | 1.5 |
| GW210PPB5 | 3 | 1.785 | 3.543 | 1.188 | 1.188 | 7880 | 4650 | 1.8 |
| GW210PP9 | 5 | 1.945 | 3.937 | 0.96 | 1.438 | 7880 | 4650 | 1.75 |
| GW211PP2 | 4 | 2.188 | 3.937 | 1.312 | 1.312 | 9740 | 5850 | 3 |
| GW211PPB2 | 3 | 2.188 | 3.937 | 1.312 | 1.312 | 9740 | 5850 | 2.62 |
| GW211PPB8 | 1 | 2.188 | 3.937 | 0.984 | 1.312 | 9740 | 5850 | 1.85 |
| GW211PPB9 | 1 | 2.195 | 3.937 | 0.984 | 1.562 | 9740 | 5850 | 2.02 |
| GW211PPB10 | 3 | 1.938 | 3.937 | 1.312 | 1.312 | 9740 | 5850 | 2.26 |
| GW211PPB13 | 1 | 1.785 | 3.937 | 0.984 | 1.312 | 9740 | 5850 | 2.02 |
| GW211PPB14 | 1 | 2.015 | 3.937 | 0.984 | 1.312 | 9740 | 5850 | 2 |
| GW211PPB25 | 5 | 1.785 | 3.937 | 0.96 | 1.75 | 9740 | 5850 | 2.44 |
| GW214PP2 | 4 | 2.756 | 4.921 | 1.312 | 1.562 | 14000 | 8800 | 4.19 |
| GW214PPB2 | 3 | 2.756 | 4.921 | 1.312 | 1.562 | 14000 | 8800 | 3.96 |
| GW214PPB3 | 3 | 1.953 | 4.921 | 1.312 | 1.562 | 14000 | 8800 | 4.24 |
| GW214PPB5 | 2 | 2.756 | 4.921 | 0.96 | 2.688 | 14000 | 8800 | 4.75 |
| GW214PPB6 | 1 | 2.688 | 4.921 | 0.984 | 2.688 | 14000 | 8800 | 5.14 |
Showing 19 of 19 models
Original Dimension Drawing
For full dimensional details, download the original technical drawing below.
Frequently Asked Questions
What bore types are available for CTZ agricultural bearings?
CTZ agricultural bearings are offered with round, square and hex bores to match different shaft styles on farm equipment. Round bore suits standard shafts, square bore locks to square bar, and hex bore fits hex stock on planters and harrows. Common models such as GW203PP, GW210PP, GW211PP and GW214PP cover shaft sizes from about 45 mm to 70 mm. CTZ publishes bore, outer diameter and load data so buyers can match the correct agricultural bearing to the application.
What is the MOQ for agricultural bearings?
CTZ accepts trial and full-container orders for agricultural bearings. Wholesale MOQ for popular models like GW203PP, GW210PP and GW211PP often starts at a few hundred pieces, with mixed-model pallets available for distributors. OEM and private label agricultural bearing orders set MOQ by box printing and packing. Send the model and quantity to the Ningbo team to confirm MOQ and unit pricing for your market.
How are agricultural bearings sealed against dust and mud?
CTZ agricultural bearings use triple-lip or flanged seals with factory grease to block dust, mud and crop residue from the rolling elements. The sealed insert extends service life through a season of field use and withstands washdown. Bearing rings use Chrome Steel (GCr15 / 100Cr6) for hardness and wear resistance. CTZ applies seal and rotation checks so agricultural bearings keep consistent quality for distributors and OEM customers in harsh farming conditions.
How are agricultural bearings packed for export?
Agricultural bearings ship in neutral packing by default, with OEM brand packing, custom boxes, labels and export cartons available. Units are packed in inner boxes, master cartons and pallets for sea freight, and anti-rust protection can be added for humid routes. CTZ confirms artwork, carton count and pallet type before production so distributors receive agricultural bearing orders ready for local sale and dealership display.
What is the delivery time for agricultural bearing orders?
Agricultural bearing orders usually ship 20 to 30 days after deposit, depending on quantity, model mix and packing. Popular sizes such as GW210PP and GW211PP are often partly stocked for faster dispatch, while custom OEM packing or large volumes take longer. CTZ arranges mixed container loads from Ningbo and shares a production and shipment schedule so distributors can plan stock for the planting and harvest seasons.
